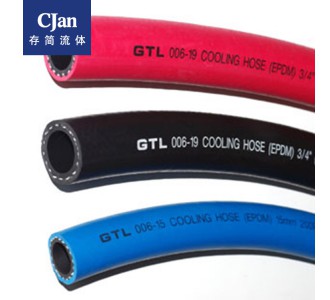

GTL 006 絕緣冷卻軟管
Application:
It is used to transport propylene glycol antifreeze, cooling water, air and inertial gas in the induction furnace, medical equipment, data rooms and industrial cooling unit, and is suitable for places requiring high insulation. It is also available for places where need bending or friction, and rolling-up of spindle.
Technical characteristics: Special carbon-free design, high insulation and non-conducting, specific resistance of 2X1013Ω withstand voltage as high as 6000V.
Construction:
Tube: Black EPDM synthetic rubber., smooth
Reinforcements: High-strength synthetic fiber braided layer.
Cover: Black, red or blue. EPDM synthetic rubber., resistant to abrasion, UV
Temperature range: –40°C～+90°C
Standard/Approval: Meets ROHS
應用范圍：
用于感應電爐、醫療設備、數據機房、工業冷機組等場所輸送丙二醇水混合防凍液、冷卻水、壓縮空氣、惰性氣體。耐臭氧性、抗老化性。適用于高絕緣要求場所。
技術特點: 特別無碳設計，高絕緣，不導電。電阻率 2X1013Ω，可耐電壓高達6000V。
軟管結構:
內管: EPDM合成橡膠。
增強層：高強度合成纖維。
外管: 黑色，藍色，紅色抗老化EPDM合成橡膠。
適用溫度: -40 to 90℃
適用標準及認證：符合ROHS認證
|
編碼 |
內徑 |
內徑 |
外徑 |
工作壓力 |
爆破壓力 |
長度 |
|
inch |
mm |
mm |
bar |
Bar |
m |
|
|
GTL006-010 |
3/8" |
9.5 |
16.5 |
15 |
55 |
100 |
|
GTL006-012 |
12mm |
12 |
19.5 |
15 |
55 |
100 |
|
GTL006-013 |
1/2" |
12.7 |
20.5 |
15 |
55 |
100 |
|
GTL006-015 |
15mm |
15 |
23 |
15 |
55 |
60 |
|
GTL006-016 |
5/8" |
15.9 |
24 |
15 |
55 |
60 |
|
GTL006-019 |
3/4" |
19 |
27.2 |
15 |
55 |
60 |
|
GTL006-022 |
7/8" |
22.2 |
32 |
15 |
55 |
60 |
|
GTL006-025 |
1" |
25.4 |
35 |
15 |
55 |
60 |
|
GTL006-032 |
1-1/4" |
31.8 |
43.8 |
10 |
40 |
36 |
|
GTL006-038 |
1-1/2" |
38.1 |
51 |
10 |
40 |
30 |
|
GTL006-041 |
1-5/8" |
41 |
54 |
10 |
40 |
20 |
|
GTL006-045 |
1-3/4" |
45 |
58 |
10 |
40 |
20 |
|
GTL006-051 |
2" |
50.8 |
66 |
10 |
40 |
20 |
?
