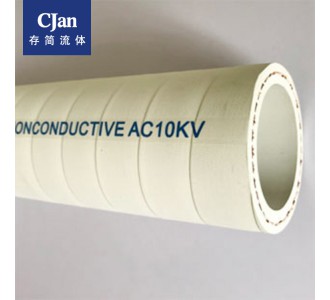

中頻感應電爐專用軟管 還原電爐絕緣軟管 JY10
Applications:
it is suitable for conveying purified water through cable in induction electric furnace water cooling system with voltage of 10KV. Pure carbon - free, high insulation, wear - resistant, anti - aging.
Construction:
Tube: white, smooth, pure, carbon-free, high-insulated EPDM synthetic rubber.
Reinforcement: high strength polyester fiber.
Cover: white or green, pure carbon - free, high - insulation EPDM synthetic rubber. Smooth for ID≤1", fabric impression for ID＞1”.
Electrical resistance: high insulation, excellent low leakage current. At 10KV DC/AC voltage, the leakage current is less than 20 Micro Amp.
Temperature range: -40 °C +120 °C
Environmental standards: EU pahs-2, REACH, ROHS directive.
Technical standard: HG/T2184, CJAN
應用范圍：
適用于電壓10KV內感應電爐水冷系統穿電纜輸送純凈水。純凈無碳，高絕緣，耐磨、抗老
化。
軟管結構：
內管：白色，光滑、純凈、無碳、高絕緣的EPDM合成橡膠。
增強層: 高強度聚酯纖維線。
外管：白色，光面（1"以上為布面）純凈無碳、高絕緣EPDM合成橡膠；其他綠色/紅色/藍色可根據客戶要求定制。
耐電壓：
高絕緣，優秀的低泄露電流。在10KV DC/AC電壓下，泄露電流小于20 Micro Amp。
適用溫度：-40 to 120 ℃。
環保標準：符合歐盟PAHS-2、REACH、ROHS指令。
技術標準：HG/T2184, CJAN
|
編碼 |
內徑 |
外徑 |
彎曲半徑 |
工作壓力 |
爆破壓力 |
重量 |
每卷長度 |
|
|
inch |
mm |
mm |
mm |
PSI |
PSI |
kg/m |
m |
|
|
JY10013 |
1/2" |
12.7 |
22.0 |
100 |
300 |
1200 |
0.31 |
100 |
|
JY10016 |
5/8" |
15.9 |
25.0 |
120 |
300 |
1200 |
0.35 |
60 |
|
JY10019 |
3/4" |
19.0 |
29.0 |
150 |
300 |
1200 |
0.46 |
60 |
|
JY10022 |
7/8" |
22.2 |
33.0 |
170 |
300 |
1200 |
0.58 |
60 |
|
JY10025 |
1" |
25.4 |
38.0 |
200 |
300 |
1200 |
0.76 |
60 |
|
JY10032 |
1-1/4" |
31.8 |
50.0 |
250 |
250 |
1000 |
1.1 |
40 |
|
JY10038 |
1-1/2" |
38.1 |
56.0 |
300 |
250 |
1000 |
1.38 |
40 |
|
JY10042 |
42mm |
42.0 |
60.0 |
336 |
250 |
1000 |
1.46 |
40 |
|
JY10045 |
45mm |
44.5 |
62.5 |
360 |
250 |
1000 |
1.6 |
40 |
|
JY10050 |
2" |
50.8 |
68.8 |
400 |
250 |
1000 |
1.9 |
40 |
|
JY10063 |
2-1/2" |
63.5 |
81.5 |
500 |
200 |
800 |
2.5 |
40 |
|
JY10076 |
3" |
76.2 |
94.2 |
600 |
150 |
600 |
3.2 |
40 |
