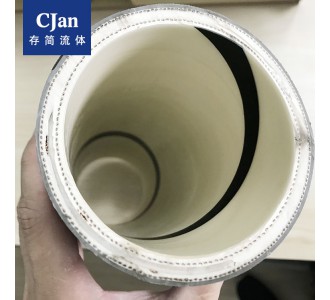

電解液輸送軟管 導電帶UPE化學品吸排軟管 UASD
Applications:
hard wall hose suitable for a wide range of chemicals, petroleum product and oils, suitable for acid and chemicals in high concentration up to 98%.
Construction
Inner tube: Transparent, UPE, smooth, conductive through a black UPE helix stripe, food grade.
Reinforcement: Plies of high strength synthetic cord, embedded steel wire helix, copper wires.
Cover: Gray EPDM rubber, smooth, conductive through a black helix stripe, abrasion, ozone and weather resistant, cloth finish (other color available upon request).
Temperature range: -40 °C～+100 °C
Standard/Approval: Meets FDA
使用范圍：
適用于輸送和抽吸絕大多數侵蝕性化學品，溶劑，醇類，可輸送濃度達 98％的酸和化學品。
軟管結構：
內管：透明UPE(超高分子多聚乙烯)，平滑，黑色UPE螺旋導電帶穿過內壁(R<106Ω)，食品級。
增強層：多層高強力纖維編織及內置螺旋鋼絲增強，帶導電銅絲。
外管：灰色EPDM橡膠（三元乙丙），平滑，黑色螺旋導電帶穿過外壁，抗磨損，耐臭氧，耐大氣侵蝕布狀表面（其他顏色可定制）。
溫度范圍：-40°C～+100°C
適用標準及認證：符合FDA認證
|
編碼 |
內徑 |
外徑 |
彎曲半徑 |
工作壓力 |
包裝長度 |
||
|
inch |
mm |
mm |
mm |
psi |
bar |
m |
|
|
UASD019 |
3/4" |
19.05 |
30 |
130 |
240 |
16 |
100 |
|
UASD025 |
1" |
25.4 |
36 |
150 |
240 |
16 |
100 |
|
UASD032 |
1-1/4" |
31.8 |
43 |
200 |
240 |
16 |
100 |
|
UASD038 |
1-1/2" |
38.1 |
49 |
225 |
240 |
16 |
100 |
|
UASD051 |
2" |
50.8 |
62 |
275 |
240 |
16 |
100 |
|
UASD063 |
2-1/2" |
63.5 |
76 |
275 |
240 |
16 |
100 |
|
UASD076 |
3" |
76.2 |
89 |
400 |
240 |
16 |
100 |
|
UASD102 |
4" |
101.6 |
116 |
800 |
240 |
16 |
100 |
|
UASD127 |
5" |
127 |
144 |
1300 |
240 |
16 |
100 |
|
UASD152 |
6" |
152 |
171 |
1600 |
240 |
16 |
100 |
關鍵詞：電解液輸送軟管 防靜電化學品吸排軟管 導電軟管 鋰電池專用管
?
