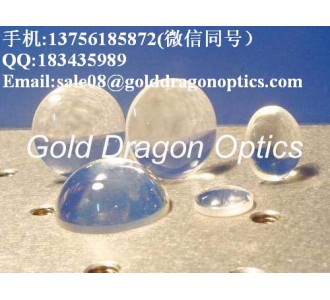

K9平凸球面透鏡
材 料:H-K9L
設計波長:632.8nm
焦距公差:±1%
外形公差:+0.0/-0.1mm
厚度公差:±0.1mm
面 型:λ/4@632.8nm
光 潔 度:40-20
偏 心:<3'
有效孔徑:>90%
倒 邊:<0.2×45°
鍍 膜:多層增透膜
A:350-650nm
B:650-1050nm
C:1050-1580nm
K9平凸球面透鏡 (尺寸及鍍膜可按用戶需求定制)單位(mm)
| 編號(NO.) |
焦距(EFL) |
直徑(Dia) |
半徑(R) |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 11A1116R |
10.00 |
6.00 |
5.15 |
2.50 |
1.50 |
8.35 |
| 11A1470R |
12.00 |
6.00 |
6.18 |
2.30 |
1.50 |
10.48 |
| 11A1222R |
15.00 |
6.00 |
7.73 |
2.10 |
1.50 |
13.61 |
| 11A1700R |
30.00 |
6.00 |
15.45 |
1.80 |
1.50 |
28.81 |
| 11A1576R |
12.00 |
9.00 |
6.18 |
3.40 |
1.50 |
9.76 |
| 11A1472R |
20.00 |
9.00 |
10.30 |
2.50 |
1.50 |
18.35 |
| 11A1540R |
15.00 |
12.70 |
7.73 |
5.10 |
1.80 |
11.63 |
| 11A1074R |
20.00 |
12.70 |
10.30 |
4.00 |
1.80 |
17.36 |
| 11A1560R |
25.00 |
12.70 |
12.88 |
3.50 |
1.80 |
22.69 |
| 11A1289R |
30.00 |
12.70 |
15.45 |
3.20 |
1.80 |
27.89 |
| 11A1304R |
40.00 |
12.70 |
20.60 |
2.80 |
1.80 |
38.15 |
| 11A1213R |
50.00 |
12.70 |
25.75 |
2.60 |
1.80 |
48.28 |
| 11A1207R |
100.00 |
12.70 |
51.51 |
2.20 |
1.80 |
98.55 |
| 11A1859R |
20.00 |
18.00 |
10.30 |
7.10 |
1.80 |
15.31 |
| 編號(NO.) |
焦距(EFL) |
直徑(Dia) |
半徑(R) |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 11A1270R |
25.00 |
18.00 |
12.88 |
5.50 |
1.80 |
21.37 |
| 11A1085R |
30.00 |
18.00 |
15.45 |
4.70 |
1.80 |
26.90 |
| 11A1119R |
50.00 |
18.00 |
25.75 |
3.40 |
1.80 |
47.76 |
| 11A1252R |
25.40 |
25.00 |
13.08 |
11.70 |
2.50 |
17.68 |
| 11A1255R |
50.00 |
25.00 |
25.75 |
5.30 |
2.07 |
46.50 |
| 11A1257R |
75.00 |
25.00 |
38.63 |
4.10 |
2.02 |
72.29 |
| 11A1251R |
100.00 |
25.00 |
51.51 |
3.60 |
2.06 |
97.62 |
| 11A1253R |
200.00 |
25.00 |
103.02 |
2.80 |
2.04 |
198.15 |
| 11A1951R |
25.40 |
25.40 |
13.08 |
11.70 |
1.80 |
17.68 |
| 11A1805R |
30.00 |
25.40 |
15.45 |
8.60 |
2.00 |
24.32 |
| 11A1027R |
35.00 |
25.40 |
18.03 |
7.20 |
2.00 |
30.25 |
| 11A1422R |
40.00 |
25.40 |
20.60 |
6.40 |
2.00 |
35.78 |
| 11A1131R |
50.00 |
25.40 |
25.75 |
5.30 |
2.00 |
46.50 |
| 11A1134R |
60.00 |
25.40 |
30.91 |
4.70 |
2.00 |
56.90 |
| 11A1608R |
75.00 |
25.40 |
38.63 |
4.10 |
2.00 |
72.29 |
| 編號(NO.) |
焦距(EFL) |
直徑(Dia) |
半徑(R) |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 11A1509R |
100.00 |
25.40 |
51.51 |
3.60 |
2.00 |
97.62 |
| 11A1986R |
125.00 |
25.40 |
64.39 |
3.30 |
2.00 |
122.82 |
| 11A1433R |
150.00 |
25.40 |
77.26 |
3.10 |
2.00 |
147.95 |
| 11A1229R |
175.00 |
25.40 |
90.14 |
2.90 |
2.00 |
173.09 |
| 11A1708R |
200.00 |
25.40 |
103.02 |
2.80 |
2.00 |
198.15 |
| 11A1461R |
250.00 |
25.40 |
128.77 |
2.60 |
2.00 |
248.28 |
| 11A1484R |
300.00 |
25.40 |
154.53 |
2.50 |
2.00 |
298.35 |
| 11A1172R |
400.00 |
25.40 |
206.04 |
2.40 |
2.00 |
398.42 |
| 11A1908R |
500.00 |
25.40 |
257.55 |
2.30 |
2.00 |
498.48 |
| 11A1978R |
750.00 |
25.40 |
386.32 |
2.20 |
2.00 |
748.55 |
| 11A1464R |
1000.00 |
25.40 |
515.09 |
2.20 |
2.00 |
998.55 |
| 11A1274R |
40.00 |
30.00 |
20.60 |
9.00 |
2.50 |
34.06 |
| 11A1102R |
50.00 |
30.00 |
25.75 |
7.30 |
2.50 |
45.18 |
| 11A1765R |
75.00 |
30.00 |
38.63 |
5.50 |
2.50 |
71.37 |
| 11A1031R |
100.00 |
30.00 |
51.51 |
4.70 |
2.50 |
96.90 |
| 編號(NO.) |
焦距(EFL) |
直徑(Dia) |
半徑(R) |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 11A1911R |
120.00 |
30.00 |
61.81 |
4.30 |
2.50 |
117.16 |
| 11A1907R |
150.00 |
30.00 |
77.26 |
3.10 |
1.60 |
147.95 |
| 11A1541R |
200.00 |
30.00 |
103.02 |
2.80 |
1.70 |
198.15 |
| 11A1832R |
250.00 |
30.00 |
128.77 |
2.60 |
1.70 |
248.28 |
| 11A1419R |
300.00 |
30.00 |
154.53 |
2.50 |
1.80 |
298.35 |
| 11A1237R |
500.00 |
30.00 |
257.55 |
2.30 |
1.80 |
498.48 |
| 11A1401R |
60.00 |
50.80 |
30.91 |
16.30 |
3.00 |
49.24 |
| 11A1145R |
75.00 |
50.80 |
38.63 |
12.50 |
3.00 |
66.75 |
| 11A1050R |
100.00 |
50.80 |
51.51 |
9.70 |
3.00 |
93.60 |
| 11A1384R |
125.00 |
50.80 |
64.39 |
8.20 |
3.00 |
119.59 |
| 11A1417R |
150.00 |
50.80 |
77.26 |
7.30 |
3.00 |
145.18 |
| 11A1399R |
175.00 |
50.80 |
90.14 |
6.70 |
3.00 |
170.58 |
| 11A1979R |
200.00 |
50.80 |
103.02 |
6.20 |
3.00 |
195.91 |
| 11A1301R |
250.00 |
50.80 |
128.77 |
5.50 |
3.00 |
246.37 |
| 11A1256R |
300.00 |
50.80 |
154.53 |
5.10 |
3.00 |
296.63 |
| 編號(NO.) |
焦距(EFL) |
直徑(Dia) |
半徑(R) |
中心厚(Tc) |
邊厚(Te) |
后焦距(BFL) |
| 11A1725R |
400.00 |
50.80 |
206.04 |
4.60 |
3.00 |
396.96 |
| 11A1380R |
500.00 |
50.80 |
257.55 |
4.30 |
3.00 |
497.16 |
| 11A1727R |
750.00 |
50.80 |
386.32 |
3.80 |
3.00 |
747.49 |
| 11A1779R |
1000.00 |
50.80 |
515.09 |
3.60 |
3.00 |
997.62 |
| 11A1740R |
85.00 |
75.00 |
43.78 |
24.20 |
3.00 |
69.03 |
| 11A1238R |
100.00 |
75.00 |
51.51 |
19.20 |
3.00 |
87.33 |
| 11A1002R |
150.00 |
75.00 |
77.26 |
12.70 |
3.00 |
141.62 |
| 11A1353R |
200.00 |
75.00 |
103.02 |
10.10 |
3.00 |
193.33 |
